Michael Hardin Key Takeaways
- dL is literal: the lid did not lock within three minutes, so the cycle never started. It is not a drain or pump fault.
- The confirmation can fail mechanically — the latch cannot travel — or electrically, when it travels and the control never hears about it.
- dL, dU and F5E1 are three different faults: failed to lock, failed to unlock, and a lid switch fault.
- One dL after a power blip is normal. A dL on most cycles means the lock assembly, its harness, or the control board.
- Never defeat the lock with tape or a magnet — it is what stops an open drum from spinning.
The Bottom Line
Clear the lid rim, wipe the latch receiver, and listen for the lock to run at the start of a cycle. If it stays silent or dL returns on most loads, the lock circuit needs a technician rather than another restart.
Your washer fills, pauses, and then two characters sit on the display where the time remaining should be. Nothing drains, nothing spins, and the machine waits there until you cancel it. The Maytag washer DL code has one literal meaning, and the site's own code archive spells it out: dL means the lid did not lock within three minutes. That is worth knowing before you start pulling hoses. The washer is not confused about water level or drainage. It asked the lid lock to close, waited three minutes, got no confirmation back, and stopped the cycle rather than spin an unlocked drum.
| What you see | Most likely cause | Where to start |
|---|---|---|
| dL within the first few minutes of a cycle | Something caught under the lid edge | Clear the rim, close firmly, restart |
| Lid closes but you never hear the lock run | Lock actuator not driving | Listen at the start of a cycle |
| Lid sits proud on one corner | Bent hinge or warped lid | Check the lid lies flat all round |
| dL started after the machine was moved | Pinched harness behind the cabinet | Pull the washer out and look |
| dL on every cycle, lock never moves | Lid lock assembly or control board | Book a diagnostic |
What the Machine Is Actually Telling You
A modern top-load Maytag will not agitate hard or spin with the lid unlatched, because an open drum turning at spin speed is genuinely dangerous. The lock is therefore a gate: no confirmed lock, no cycle. When the control sends the lock command, it expects a switch inside the lock assembly to report back that the latch travelled and seated. Three minutes is the patience the control has. After that it posts the code and stops.
So dL is not a diagnosis of a broken part. It is a report that a confirmation never arrived. The confirmation can fail for a mechanical reason — the latch cannot physically travel — or for an electrical one — it travelled and nobody heard about it. Both end with the same two characters on the display, and separating them is most of the work.
dL, dU and F5E1 Are Three Different Faults
These get mixed up constantly, and the archive on this site keeps them apart:
- dL — the lid did not lock within three minutes. The cycle never really started.
- dU — the lid did not unlock within three minutes. The cycle finished and now you cannot open the machine.
- F5E1 — a lid switch fault on a top-load washer. The control is questioning the switch itself rather than the travel of the latch.
If you are trapped with a full drum rather than a stalled one, you are reading about the wrong code. And if the machine posts all three in rotation, treat that as one fault in the lock circuit, not three separate problems.
What You Can Check Safely
Everything in this list happens with the machine unplugged, except the one step where you deliberately watch a cycle start. Nothing here involves taking the console apart.
- Unplug the washer for one minute. A single dL after a power blip is common and often does not come back. Do this before anything else so you are not chasing a fault that already cleared.
- Run your hand around the lid rim. A sock, a bra wire, a stray coin or a fold of a heavy comforter will hold the lid a few millimetres open — far less than you would think is enough.

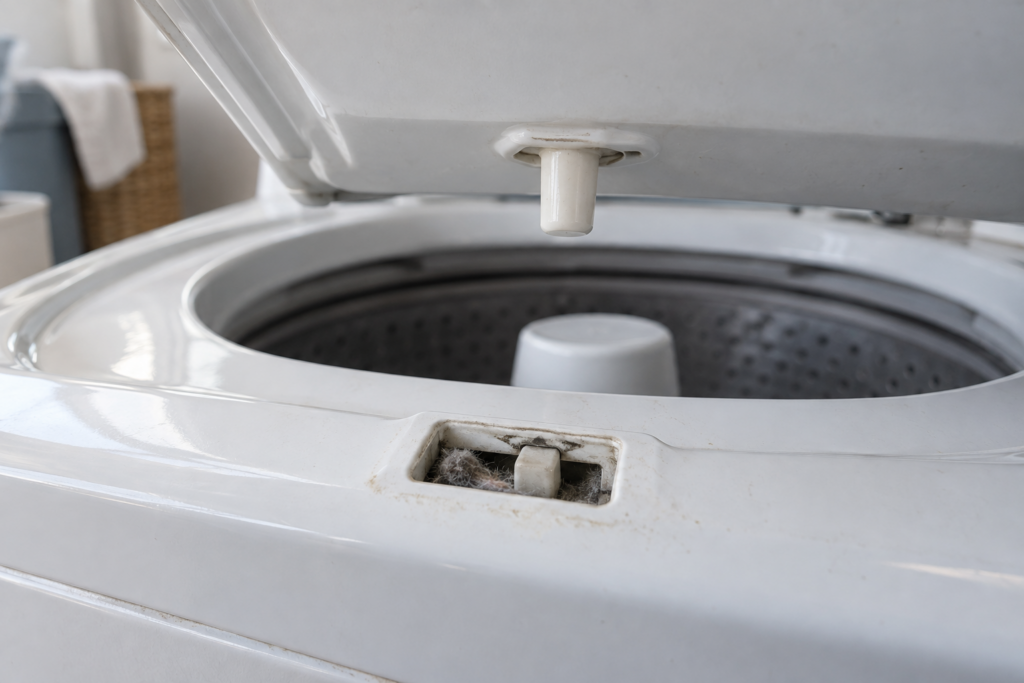

- Look at the strike and the receiver. The plastic pin on the lid and the slot it drops into both collect lint and detergent film. Wipe the slot clean and check the pin is not chipped or bent.
- Close the lid and press down at each corner. If it rocks, the lid or a hinge is distorted and the pin is no longer meeting the slot square.
- Start a cycle and listen. A healthy lock makes a short, distinct mechanical click or buzz within a few seconds. Silence there points at the lock assembly or its wiring rather than at anything you can clear by hand.
- Check behind the machine if it was moved recently. A harness trapped between the cabinet and the wall can break the lock circuit with no visible damage to the lock itself.
Two things not to do. Do not defeat the lock with tape, a magnet or a wedge: it is the part that keeps the drum from spinning open, and our guide to lid lock safety on Maytag washers explains what that protection is for. And do not force a locked lid open with a screwdriver — bending the receiver turns a lock replacement into a lid replacement.
When dL Keeps Coming Back
An occasional dL after a power interruption is noise. A dL that returns on most cycles is a failing part, and the honest shortlist is short: the lid lock assembly, the harness that feeds it, or the main control board that drives and reads it. Lock assemblies wear out on machines that get heavy use, and the failure is usually gradual — the lock works cold, then starts missing on long cycles as the actuator heats up.
Overloading makes it worse. A drum packed past the top row lets bulky items press up on the underside of the lid, and the latch has to fight that pressure every time. If dL arrives mostly on comforter loads, the machine is telling you something about the loads, not only about the lock. The same habit shows up elsewhere as oL, an overloaded drum.
Getting It Fixed
A lid lock replacement means opening the console or the top panel to reach the assembly and its connector, and on most machines the control board sits right there. That is the point at which it stops being a five-minute check. Our Maytag washer repair service covers the lock circuit end to end, and a technician can tell in one visit whether the latch is failing mechanically or the signal is being lost on the way back.
Diagnostic work starts from $89, and a lid lock assembly replacement starts from $139. The final price is confirmed after the on-site diagnosis, and you get a written estimate before any work begins. If the drum is full and the lid will not release, do not wait it out — book a visit or send us the details and leave the machine switched off until then. While you are here, the wider list of common Maytag washer problems covers the faults that travel with this one.
